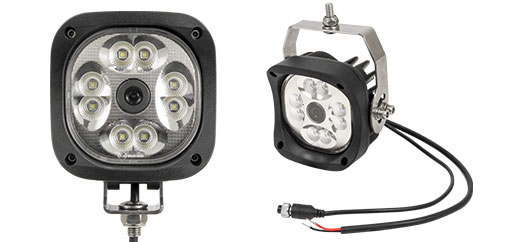

A-WL89CC Color Work Lamp Camera With LED Lights
Color Work Lamp Camera With LED Lights

Add lighting and video capabilities to your equipment simultaneously with A&I Products A-WL89CC CabCAM™ / LED
light combo. The addition of LED lights provides a more illuminated viewing area than infrared with more accurate color
reproduction on screen. Includes two universal mounting brackets for compatibility with nearly any application.

  • For wired CabCAM™ Systems
  • Flood Pattern LED Light with built in video camera
  • 8 - 5 Watt Cree LED Diodes
  • 3200 Raw Lumens - 2500 Effective Lumens
  • Draws 1.5 Amps @ 12 Volts & .75 Amp @ 24 Volts
  • Die cast aluminum body, Polycarbonate lens


Image Device 1/3" Sharp Sensor CCD Electronic Shutter 1/100,000 Second
TV System
BLC Auto
Effective Pixels
976 x 494 | 976 x 582
Current Consumption Max 450mA
Sync. System Internal Power Supply DC12V
Horizontal Resolution 600 TV Lines Operating Temperature -30°C ~ 70°C
Minimum Illumination Depends on angle Storage Temperature -40°C ~ 80°C
Video Output 1.0Vp-p, 75Ohm Viewing Angle 69°
AGC Auto Audio No
S/N Radio Better than 48db Infrared Illuminators 8
White Balance Auto
